Description

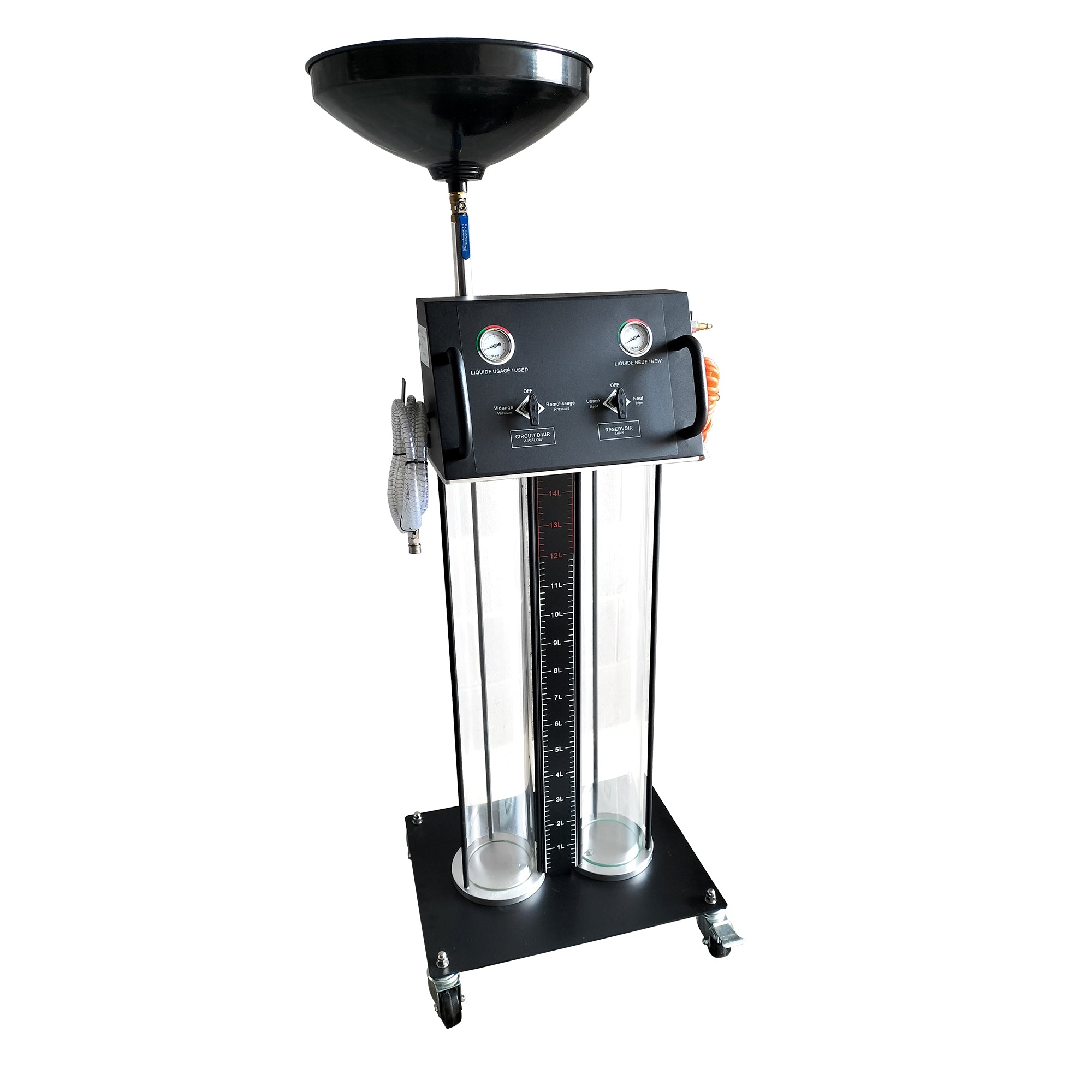

53401000 - Coolant Exchange Machine
The Sykes Pickavant Coolant Exchange Machine makes coolant servicing faster, cleaner and more efficient by eliminating the need to disconnect hoses. Using a simple conical adaptor, old coolant is removed from the reservoir and replaced with fresh fluid in minutes using a deep vacuum system - saving up to 25 minutes compared to traditional methods.
This machine not only accelerates coolant changes but also helps prevent air pockets in the cooling system, reducing the need for additional air purging. Its design keeps workshop floors clean and minimises coolant spills and ground pollution during service.
Without disconnecting hoses, coolant is easily changed by inserting a conical adapter into reservoir tank. The coolant exchange job can be done by deep vacuum within 5 minutes, instead of half hour taken in hose disconnecting and restoring job. Also, this vacuum exchange process can avoid air pockets to save air purge time after coolant exchange.
For some vehicles that do not have a straight in reservoir tank design, (cannot utilize the conical adaptor to do coolant exchange through the reservoir tank), the coolant receiving pan allows coolant to be exchanged using gravity.
Features
- Exchanges coolant using suction or gravity
- Pneumatically driven with user friendly dual manual valves
- Entire work process visible through fibre glass tanks
- Suitable for both on vehicle and off vehicle use
- Wide range of adaptors covers over 90% vehicles on the road
- Includes 53401200 - Coolant Exchange Adaptor Set - A selection of steel hose clamps, connecting tubes and stepped hose adaptors to fit all types of vehicle applications
- Includes 4 x Cooling System Flush Fluids (FCF)
Specification
• Fluid Capacity: 15L (new and used)
• Pressure gauge range: -1-5 bar
• Maximum working pressure: 3 bar
• Return/Outlet hose length: 3m
Functions
• Extract used coolant via vacuum
• Add fresh coolant
• Empty both new and used fluid tanks
